ACCORDEON DOORS

UNIFOLD

Unifold accordion doors are an option when quick economical sight and visual separation is desired. Fully tested STC values from15 to 44 are available. The preferred internal pantograph style frame  is our standard. Standard finishes are vinyl, carpet or fabric. Maximum heights are 12’3” and maximum single door widths are 35’3”. Contact Moderco for your accordion door needs.

UNIFOLD

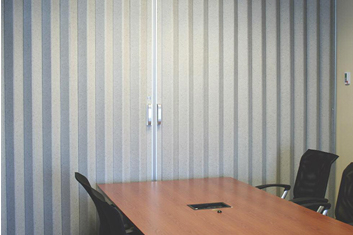

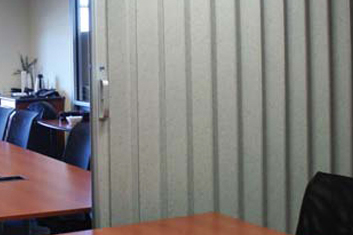

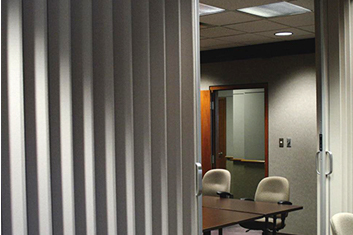

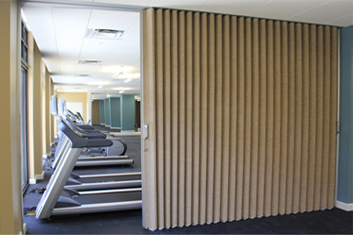

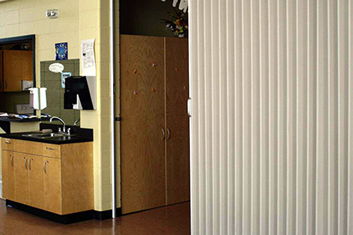

Unifold Accordion Door

Moderco’s Unifold offers the ideal solution for meeting room
dividers. The Moderco Unifold Accordion Door is beautiful and
durable with high acoustical performance.A range of acoustical doors (STC 31, 35, 40, 44) and a
non-acoustical door are available to meet every need and
budget.

  •  Lasting look
  •  Acoustical and secure closure
  •  Wide range of finishes
  •  Rigid cover with no visible hinges, seams or fabric buttons
  •  14GA steel internal pantograph system
  •  Full height u-shaped steel channels
  •  Dual covers attached to the pantographs
  •  Robust sliding type handle mounted on a full height steel post
    with a V-shaped acoustical moulding
  •  Independent key lock with changeable cylinder for master
    key system is available as an option
  •  Acoustical top & bottom sweep strip standard on models
    3100, 3500, 4000 and 4400.

MODEL SELECTIONS
MODELS 1500 3100 3500 4000 4400
STC RATING 31 35 40 44
CONFIGURATION Single / Bi-Part Single / Bi-Part Single / Bi-Part Single / Bi-Part Single / Bi-Part
OPERATION Manual Manual Manual Manual Manual
DOOR HANGING WEIGHT
Lbs/sq.ft. (kg/m2)
2.2 (10,8) 2.8 (13,7 3.2 (15,7) 5.9 (28,9) 7.6 (37,1)
MAX. HEIGHT 12’-2” (3,7m) 12’-2” (3,7m) 12’-2” (3,7m) 12’-2” (3,7m) 12’-2” (3,7m)
MAX. WIDTH 35’-0” (10,7m) 35’-0” (10,7m) 35’-0” (10,7m) 35’-0” (10,7m) 35’-0” (10,7m)
TOP & BOTTOM SEALS n/a Fixed sweeps Fixed sweeps Fixed sweeps Fixed sweeps
STACKED WIDTH 10” (255mm) 10” (255mm) 10” (255mm) 10” (255mm) 10” (255mm)
FINISHES Vinyl / Fabric / Carpet Vinyl / Fabric / Carpet Vinyl / Fabric / Carpet Vinyl / Fabric / Carpet Vinyl / Fabric / Carpet
