NEW PRODUCT: Operable Glass Panels
Introducing the Vision 100
Our 40 years of experience in the acoustical operable wall industry helped us
create the smoothest, easy to manipulate and most reliable single glass partition
on the market.

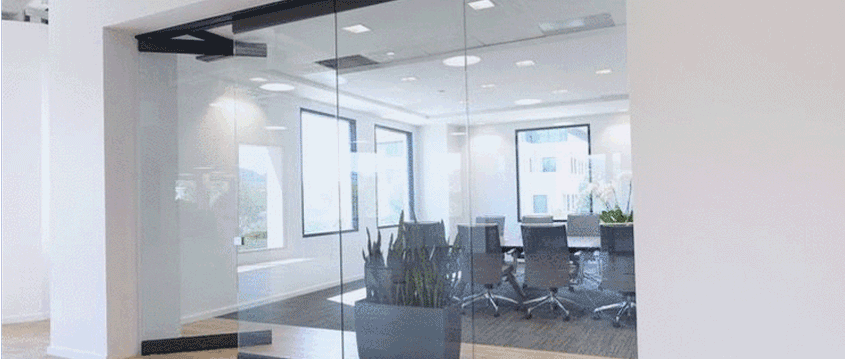

When acoustic is not an important factor, our Vision 100 series will creates physical separation in an open plan layout while maintaining the openness and the always desired joy of natural light. Its single tempered glass construction combined with top and bottom horizontal aluminum rails doesn’t require vertical moulding giving you an uninterrupted and clear view of your environment.
Standard Features
- Manually-operated individual-panel glass movable partition.
- 35 mm [1 3/8"] nominal thickness. Up to 1220 mm [48"] width.
- Clear 12 mm [1/2"] tempered glass faces with polished
vertical edges. - Clear anodized aluminum horizontal mouldings with brush
seals. - Each panel fitted with a foot bolt to stabilize the partition
- Clear anodized 6063-T6 alloy aluminum track.
- Each panel supported by two dual horizontal wheel carrier
with nylon tires over hardened precision ground steel ball
bearing wheels. - Maximum height : 3658 mm [12’-0”].
