Glass partitions are revolutionizing interior design with their sleek and modern appeal. These versatile elements can be installed in various settings, from office spaces to schools, seamlessly blending functionality with aesthetic elegance. Their clear, unobtrusive design provides a clean, uncluttered look, while their adaptability makes them suitable for any environment.

Additionally, glass partitions offer an architectural touch that can enhance the overall design of a room. Their minimalist style complements various design themes, from contemporary to industrial, and adds a sophisticated edge to the space. Whether you are looking to divide a large office into smaller meeting rooms or create a stylish separation in a living area, glass partitions provide a refined solution that does not compromise on design.

Options and Features

DOORS OPTIONS
JOINTS
ALUMINUM STRUCTURE
PANELS
GLASS TYPES

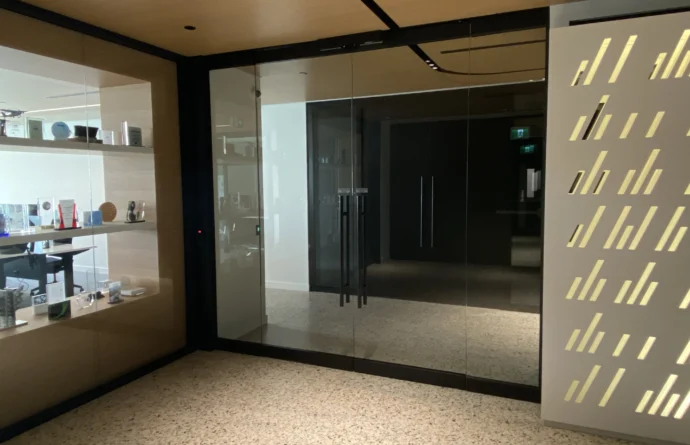

DOORS OPTIONS

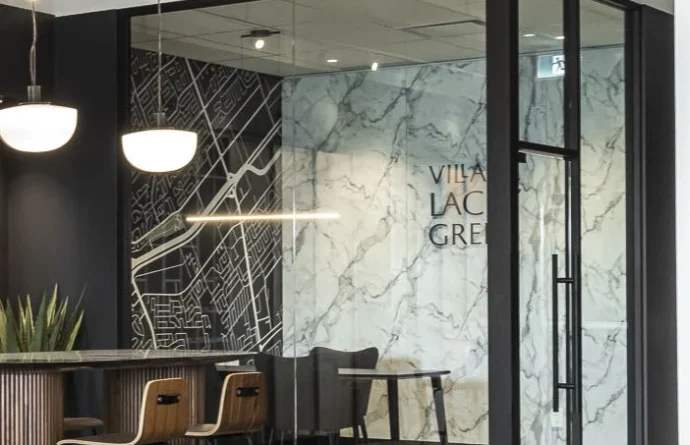

Our versatile demountable partition offers multiple door finishes (aluminum, glass or wood) and options (pivot, sliding or hinged) available in both single or double configuration.

Each type can be seamlessly integrated with our range of products, providing customizable solutions to suit various design preferences and functional needs.

JOINTS

This glass partition system features sleek and discreet polycarbonate joints that integrate seamlessly into the overall design. The minimalist details ensure a clean and subtle appearance while maintaining a refined, modern aesthetic.

We also offer an alternative joint option using aluminum profiles between the glass panels. These profiles provide a distinct visual style and allow for flexible configuration adjustments.

ALUMINUM STRUCTURE

Aluminum is widely used across a broad range of construction applications and remains the material of choice. It is essential to consider the product’s lifespan, and aluminum offers numerous significant advantages. Throughout its life cycle, it delivers outstanding benefits, particularly due to its low installation costs and long-term maintenance efficiency.

Anodized Finishes

Painted Finishes (Over 180 colors available)

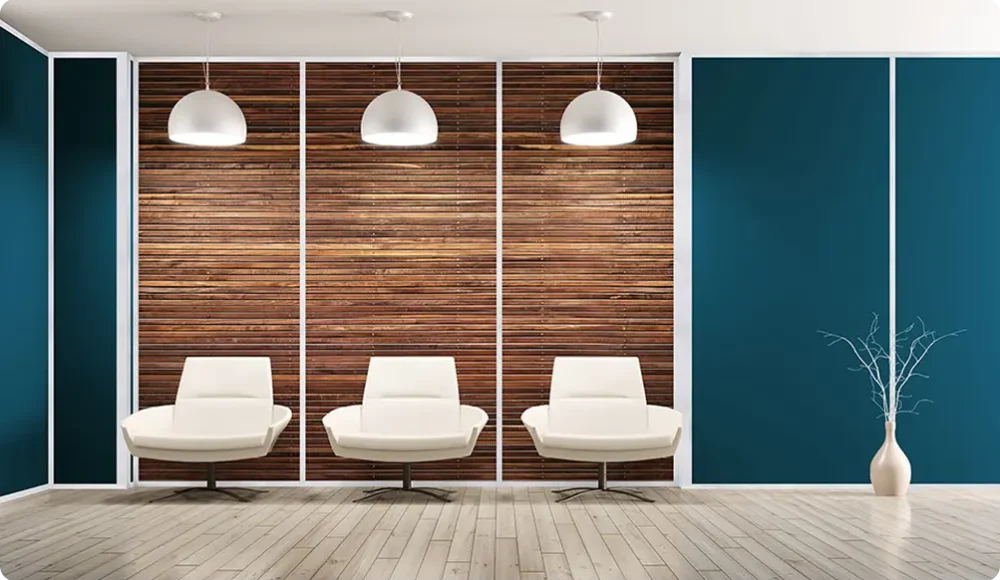

PANELS

Our glass partition system can be combined with particleboard or wood panels, available in double configurations both vertically and horizontally. The transition between glass and panel is achieved using an aluminum profile, available in either a visible or concealed (optional) design.

Standard Colors

Wood Finishes

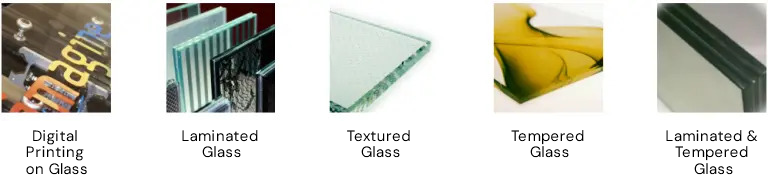

GLASS TYPES

Glass is a material with a wide range of properties and applications. When used in interior spaces, it helps optimize space while allowing natural light to flow freely. From an environmental standpoint, glass is 100% recyclable and does not degrade during the recycling process. It can be recycled indefinitely without any loss of quality or purity.

Model Selections
Profile & Ceiling

Models	321	322
STC	Single glass: 32-38	Double glass: 36-40
Glazing and Panels	Single Center Thickness: 5/16’’-3/8” (8 mm- 10 mm) Tempered, laminated or tempered laminated	Double Thickness: 5/16’’-3/8” (8 mm- 10 mm) Tempered, laminated or tempered laminated
Junctions	Polycarbonate Two face tape	Polycarbonate Two face tape
Gaskets	Available in black	Available in black
Electrical	Not available	Not available
Doors	Glass Door Pivot Door	Glass Door Pivot Door

Models	331	332
STC	Single Glass:34-38	Double glass: 42-47 Double panels: 50
Glazing and Panels	Single: offset or centered Thickness: 3/8” and ½” (10 mm – 12 mm) Tempered, laminated or tempered laminated Solid panels 1/2” and 5/8” (12 mm – 15.9 mm)	Double Thickness: 3/8” and ½” (10 mm – 12 mm) Tempered, laminated or tempered laminated Solid panels 1/2” and 5/8” (12 mm – 15.9 mm)
Junctions	Aluminium post Polycarbonate Two face tape Available 3 directions and 90-degree corner Glass and panel transom possible with post junction	Aluminium post Polycarbonate Two face tape Available 3 directions and 90-degree corner Glass and panel transom possible with post junction
Gaskets	Available in gray, black and white	Available in gray, black and white
Electrical	Wiring integrated in the aluminium possible	Wiring integrated in the aluminium possible
Doors	Glass Door -Sliding door -Hinged door -Pivot door Wood Door -Hinge door - Sliding door -Solid core Aluminium Door -Hinge door -Single glass -Thickness : 5/15’’ – 3/8’’ (8mm – 10mm)	Glass Door Sliding door Hinged door Pivot door Wood Door Hinge door Sliding door Solid core Aluminium Door Hinge door Double glass Thickness : 5/15’’ – 3/8’’ (8mm – 10mm)

321	Thickness: 1 5/8’’ (41.3 mm) Height: 1’’ (25.4 mm)
322	Height: 1’’ (25.4 mm) Glass Door, Pivot Door
331	Thickness: 3 ½’’ (88.9 mm) Height: 1 11/16” (43.2 mm)
332	Thickness: 3 ½’’ (88.9 mm) Height: 1 11/16” (43.2 mm)
