OPERABLE PARTITION

EXCEL 700

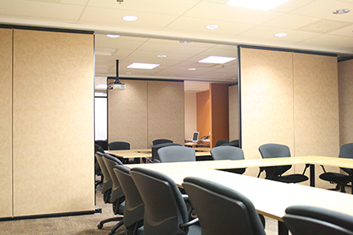

Excel is your best choice if a competitively priced, precisely engineered operable partition fits your needs. Excel (formerly 700 Series) is assembled with consistent quality. Each panel frame is fully welded utilizing heavy gauge galvanized steel. The trimless panels skins can be steel, welded to the frame or a steel reinforced surface also welded to the frame panel. Excel is available in single (right angle or switch and curve operation), paired center stacking or continuously hinged electric configurations. Independently tested full size specimens based on current ASTM test procedures have achieved STC values of 43, 48, 49 and 52 . If your partition needs include proven field performance and durability combined with a competitive price point Excel is your best option.

EXCEL 700

TECHNOLOGY

The Moderco 700 series offers a technologically advanced,
aesthetically pleasing design. It uses a unique welded steel
frame that permits all substrates (skins), and steel
to be welded to the frame. It never requires substrates or skins to
be glued or mechanically attached to the frame. This
construction provides a durable, unitized panel that will last for
years of rugged use.

CONSTRUCTION
SEALS
FEATURES
OPTIONS

MODEL SELECTIONS
MODELS 731 732 733-EG
Operation Individual Paired Continuously hinged,

electrically operated

gym divider


Configuration Remote/Side Center Center
Thickness 3’’ (77mm)
PANEL FRAME Steel frame with trimless or protective edge trims Steel frame with trimless edges
STC 43, 49
Finish Options Vinyl, Fabric, Customer owned or specified material,

Marker board,, Uncovered Steel

Vinyl, Carpet.
MAX. Height 30′-3” (9220mm) 22′-3” 6780mm) 33′-3” (9220mm)
Panel Width min. 24” (609mm) max. 48 1/2”(1230mm) Min. 24” (609mm) Max. 49 1/4”

(1250mm)


Panel Weight 5,5 to 10,9 lbs./sq. ft. [27 to 53 kg/sq.m] 4,1 to 5,1 lbs./sq. ft. (20 to 25

kg/sq.m)


Closure Telescopic panel or hinged closure panel Wall jamb or pocket doorr
Seals FA FV
TRACK #23-T, #33-T, #72 #45-T, #72 #80



SEALS
SEALS TYPE
FA Fixed top 1” (25mm) and automatic bottom 2” (50mm) floor clearance
FV Fixed top 1” (25mm) and bottom adjustable 3” (76mm) floor clearance
